Name: آینه داشبورد هوشمند دوربین دار لمسی آندروید وای فای E-ACE GPS DVR 4K - ترکیه متال شاپ
SKU: 1005005049972517
Price: 72440000 IRR
Availability: InStock

دوربین آینه‌ای E-ACE 2.5K برای ضبط ویدیوی صفحه لمسی خودرو، آینه دید عقب، داشبورد، دوربین GPS وای‌فای 1440P، ضبط ویدیوی پارکینگ 24 ساعته، جعبه سیاه

ویژگی‌ها و مشخصات

➤ نوع نصب: آینه دید عقب، مناسب برای همه خودروهای دارای آینه
➤ اندازه صفحه نمایش: صفحه نمایش لمسی IPS 10.0 اینچی
➤ چیپست (پردازنده): Allwinner
➤ سنسور دوربین: جلو 4 مگاپیکسل + Rea ۲ مگاپیکسل
➤ لنز دوربین (جلو): ۶ شیشه + زاویه ۱۷۰ درجه + دیافراگم F2.0

➤ لنز دوربین (عقب): ۴ شیشه + زاویه ۱۴۰ درجه + دیافراگم F2.2
➤ وضوح تصویر (جلو): ۲۵۶۰*۱۴۴۰P@30FPS

➤ وضوح تصویر (عقب): ۱۹۲۰*۱ 080P@25FPS
➤وضوح عکس: 12M
➤کد ویدیو: H.264
➤باتری: داخلی (باتری داخلی بسیار کوچک است، نمی‌تواند کار کند، فقط برای صرفه‌جویی در زمان و تنظیمات، لطفاً هنگام کار از شارژر اصلی استفاده کنید)

➤زبان‌های OSD: روسی، چینی، انگلیسی، کره‌ای، ژاپنی، فرانسوی، لهستانی، هلندی، اسپانیایی، عبری، پرتغالی، عربی، ترکی، آلمانی، مجارستانی، لیتوانیایی، چکی، ایتالیایی، اسلواکی، رومانیایی، تایلندی، ویتنامی. (اگر زبان دیگری می‌خواهید، لطفاً پس از دریافت کالا با ما تماس بگیرید، ما به شما در ارتقاء میان‌افزار جدید کمک خواهیم کرد و میان‌افزار جدید شامل زبان شما نیز خواهد بود.)
➤ویژگی‌های اساسی: حسگر G، ضبط چرخه، تشخیص حرکت، مانیتور پارکینگ، نمایش زمان و داده‌ها، برد دینامیکی گسترده، تصویر در تصویر نمایشگر، روشن/خاموش شدن خودکار
➤ کارت حافظه: کارت میکرو SD، کلاس 10 و از 16 گیگابایت به 128 گیگابایت (شامل نمی‌شود)
➤ ارتقاء دوربین عقب: پشتیبانی از حداکثر 15 متر کابل دوربین عقب
➤ افزودن ویژگی‌ها: دید در شب، دوربین جلو 2560*1440P با دوربین عقب 1080P، وضوح تصویر 2.5K، وای‌فای، ردیابی GPS

بسته‌بندی فهرست

-1 عدد جعبه بسته‌بندی
-1 عدد آینه DVR
-1 عدد شارژر ماشین
-1 عدد دفترچه راهنما

-2 عدد بانداژ

-1 عدد دوربین دید عقب دید در شب 1080P با کابل 10 متری (اختیاری)

-1 عدد کابل Buck برای نظارت 24 ساعته بر پارک

High-concerned chemical: None
Aperture: F1.8
Working Temperature: -20℃~70℃
Warranty: 365 Days
Cable Length: 6 to 15 meters rear camera
Dimensions (W x H x D): 9.66 Inches
Power Source: Corded Electric
APP Compatibility: YES
Data Storage Capacity: Up to 128G
Built-in Screen: Yes
Loop-Cycle Recording Feature: Yes
Audio Recorded: Yes
Maximum Video Frame Rate: 30
NightShot Function: Yes
Rear Camera: Yes
Battery Life: Working with CAR Charger
Original Package: Yes
Touch Screen: Yes
Screen Ratio: 16:9
Memory Card Required Reding Speed: Class 10
View angle: 170 Degree
Camera Resolution: 2560×1440
Video Code: H.264
Video Format: AVI,MP4
Is Batteries Included: Yes
Special Features: G-Sensor,Display Rotate,Digital zoom,sd/mmc card,With Rearview Mirror,Anti Surge Voltage Impact,Waterproof,Anti Fog,Anti Vibration,Real Time Surveillance,Automatic White Balance,Wide Dynamic Range,wifi function,Parking Monitor,Speed and Coordinates Recording,3D DNR,External GPS
Max External Memory: 128G
Number Of Lenses: 2
Imaging Sensor: Sony Ccd
Pixels: 500Mega
Display Size: 9.88
OSD Language: Chinese (Simplified),Chinese (Traditional),czech,Dutch,English,French,German,Greek,Hebrew,Italian,Japanese,Korean,Latvian,Lithuanian,Polish,Portuguese,Russia,Russian,Slovak,Slovenian,Spanish
GPS logger: External
Battery: Built-In
Assembly Mode: Rearview Mirror
Chipset Manufacturer: Allwinner
Frames Per Second: 25
Brand Name: E-ACE
Origin: Mainland China
Display: IPS
Item Type: Car DVR
Certification: CE,FCC,GMP,RoHS,pse,weee
Interface: AV-In,USB 2.0,Wi-fi,Micro SD/TF

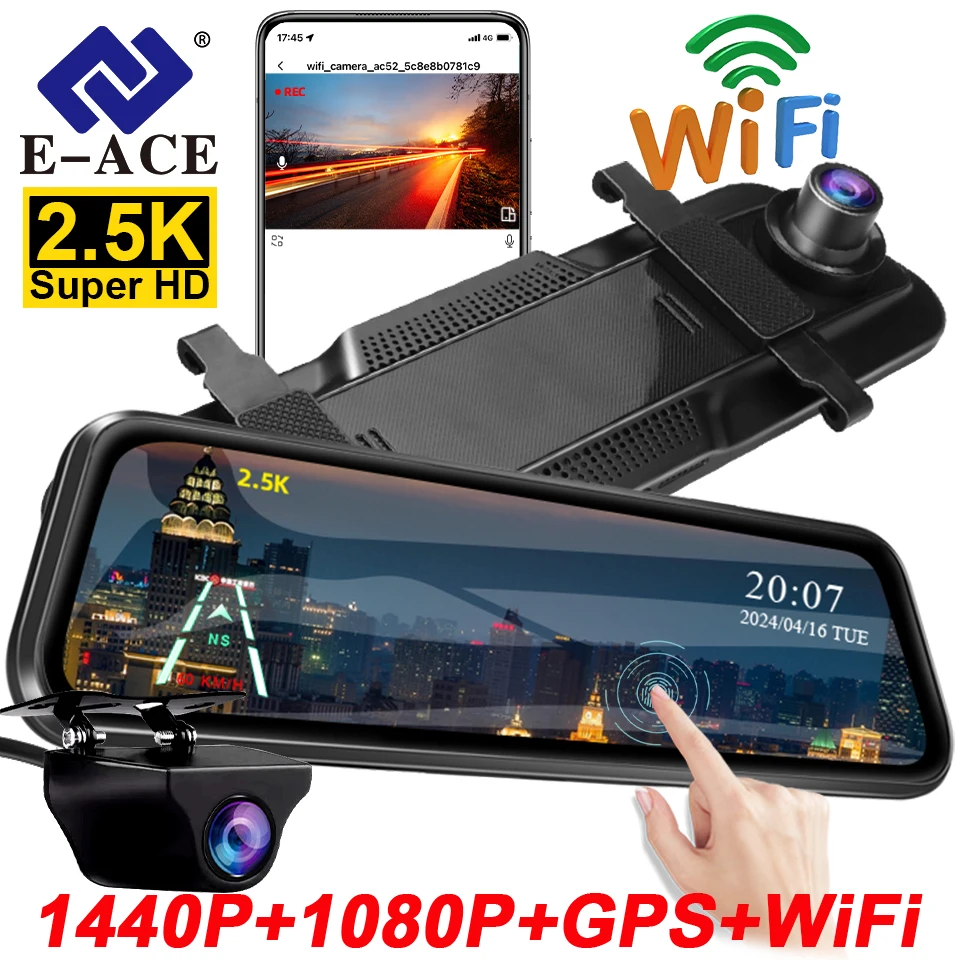

E-ACE 2.5K Mirror Camera For Car Touch Screen Video Recorder Rearview Mirror Dashcam 1440P GPS Wifi 24H Parking DVR Black Box

Features And Specifications

➤Installation Type: Rearview Mirror, suitable for all vehicles with mirror
➤Screen(Display) Size: 10.0 Inch Touch IPS Screen
➤Chipset(Processor/CPU): Allwinner
➤Camera Sensor: Front 4MP + Rear 2MP
➤Camera Lens(Front): 6 Glass + 170 Degree Angle + F2.0 Aperture

➤Camera Lens(Rear): 4 Glass + 140 Degree Angle + F2.2 Aperture
➤Video Resolution(Front): 2560*1440P@30FPS

➤Video Resolution(Rear): 1920*1080P@25FPS
➤Photo Resolution: 12M
➤Video Code: H.264
➤Battery: Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)

➤OSD Languages: Russian, Chinese, English, Korean, Japanese, French, Polish, Dutch, Spanish, Hebrew, Portuguese, Arabic Turkish, German, Hungarian, Lithuanian, Czech, Italian, Slovak, Romanian, Thai, Vietnamese. (If you want other language, please contact with us after receive goods, we will help you upgrade new firmware, and new firmware will include your language)
➤Basic Features: G-Sensor, Cycle Recording, Motion Detection, Parking Monitor, Time&Data Display, Wide Dynamic Range, Picture in picture display, ON/OFF Automatically
➤Memory Card: Micro SD Card, class 10 and 16GB to 128GB (Not included)
➤Rear Camera Upgrade: Support max 15 meters cable Rear Camera
➤Add Features: Night Vision, 2560*1440P front Camera With 1080P Rear Camera, 2.5K video resolution, WiFi, GPS tracking

Packing List

-1 x Packaging box
-1 x Mirror DVR
-1 x Car charger
-1 x User manual

-2 x Bandage

-1 x Gift
-1 x 1080P Night Vision Rearview Camera With 6 Meters Cable(Optional)
-1 x 1080P Night Vision Rearview Camera With 10 Meters Cable(Optional)

-1 x Buck Line For 24H Parking Monitoring(Optional)

Pay Attention

➤About 24h Monitoring:

The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
➤About Video:

Our Car DVR is 1440P Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can’t support our DVRs work normally, if you can’t make sure you have good TF Card, please buy our Original TF Card together.

▶About Rear Camera

Because the Chipset and Camera Sensor are different with other seller, we only guarantee that our Original rear Camera can work well with our Dashcam.

Main Features

Why choice brand E-ACE A37 ?

We are the leader brand with top No. 1 orders for this Car Dvr Mirror from year 2016. Following details are E-ACE products VS other brands products.

1. PK Chipset

E-ACE: Built-in Allwinner chipset, one of the top 3 chipsets in the industry.
It is a professional CPU for video recorder, which can support up to 6K (4K+2K) video resolution, with 1024M memory, and can run WiFi and GPS at high speed at the same time.
It can work well in the temperature range of -40℃ to 120℃.

Other: Build-in Generalplus chipset,it is the cheapest chip in the industry, and only can support 1080P video resolution.It can only run video recording and cannot support other functions.It can work only in the temperature range of -10℃ to 60℃.

2. PK Camera sensor

E-ACE: Front camera sensor is Sony IMX335P, it is 4 megapixels, Superior Night-vision by world class F1.8 6-Glass lenses,170°super wide angle.

Other: Front camera sensor is GC1064,it is only 100 mega pixels,only can support 720P resolution, 4-Glass lens, 120°wide angle without night vision.

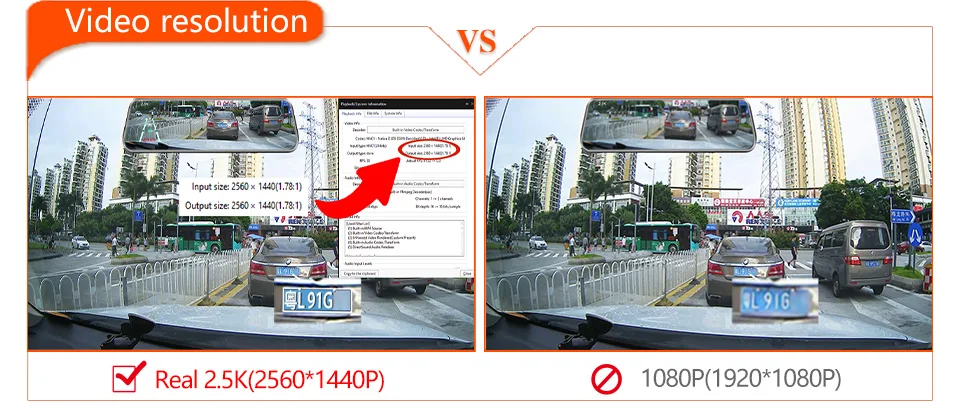

3. PK Video resolution

E-ACE: Download the recorded videos, playback on computer, we can see the video resolution is real 2.5K(2560*1440P).

Other: Playback the recorded video on computer, the video resolution is 1080P(1920*1080P) or 720P(1280*720P).

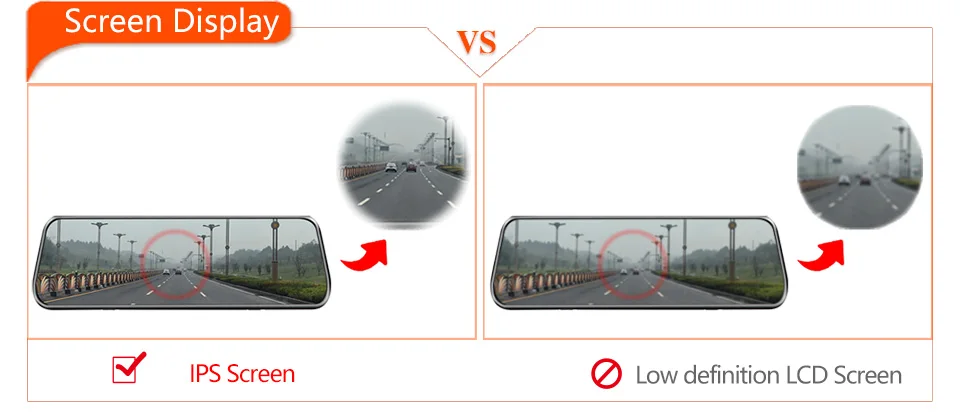

4. PK Screen Display

E-ACE: With 9.66 inches IPS Screen, it is the highest definition screen in the industry.Provides users with a smooth touch experience,and more clear when watch the video on video recorder.

Other: With LCD screen, it is low definition digital screen, very popular before 10 years, only can playback max 720P videos.

5. PK WiFi function

E-ACE: Build in WiFi,install the App in smartphone,after connect with wifi,then can preview the video and download the video into smartphone, share wonderful video to your friends via social networks.

Other: Can’t support WiFi,only can take the SD card out, and use card reader to download the videos into computer.

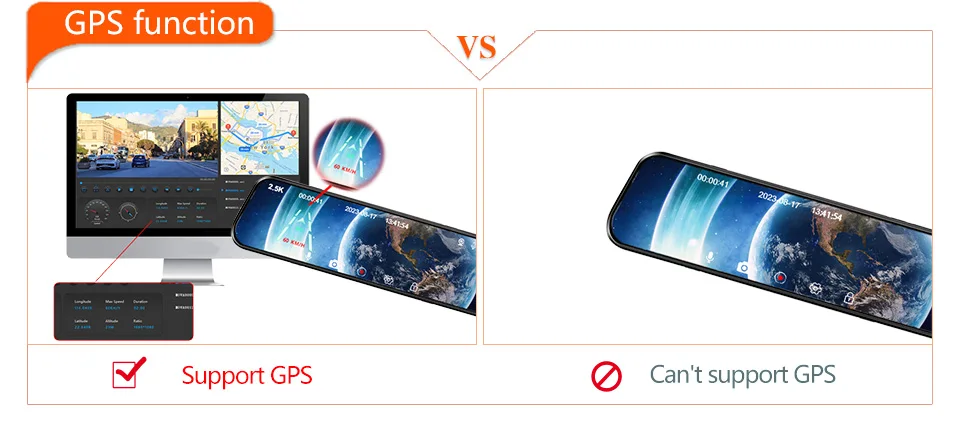

6. PK GPS function

E-ACE: Support GPS function, after connecting the GPS module, the speed and compass will be displayed on the screen, users can see the driving route and speed on the map when playing back the recorded video.

This will be important evidence if there is an accident.

Other: Can’t support GPS function.

7. PK Support MAX SD card

E-ACE: Because we used top chipset, it have great computing power, so support max 256GB SD card.

This will be important evidence if there is an accident.

Other: The chipset is poorly and cheap, only can support max 64GB SD card.

GPS Function(Not included)

Easily record your driving route, location, and speed on the GPS player.（ Use GPS, you need to buy a GPS module）

GPS Antenna(Please buy via the link) https://www.aliexpress.com/item/1005003968331256.html

Connect the GPS Antenna to DVR Mirror, after the GPS connect with satellites, will show the driving speed and compass on screen

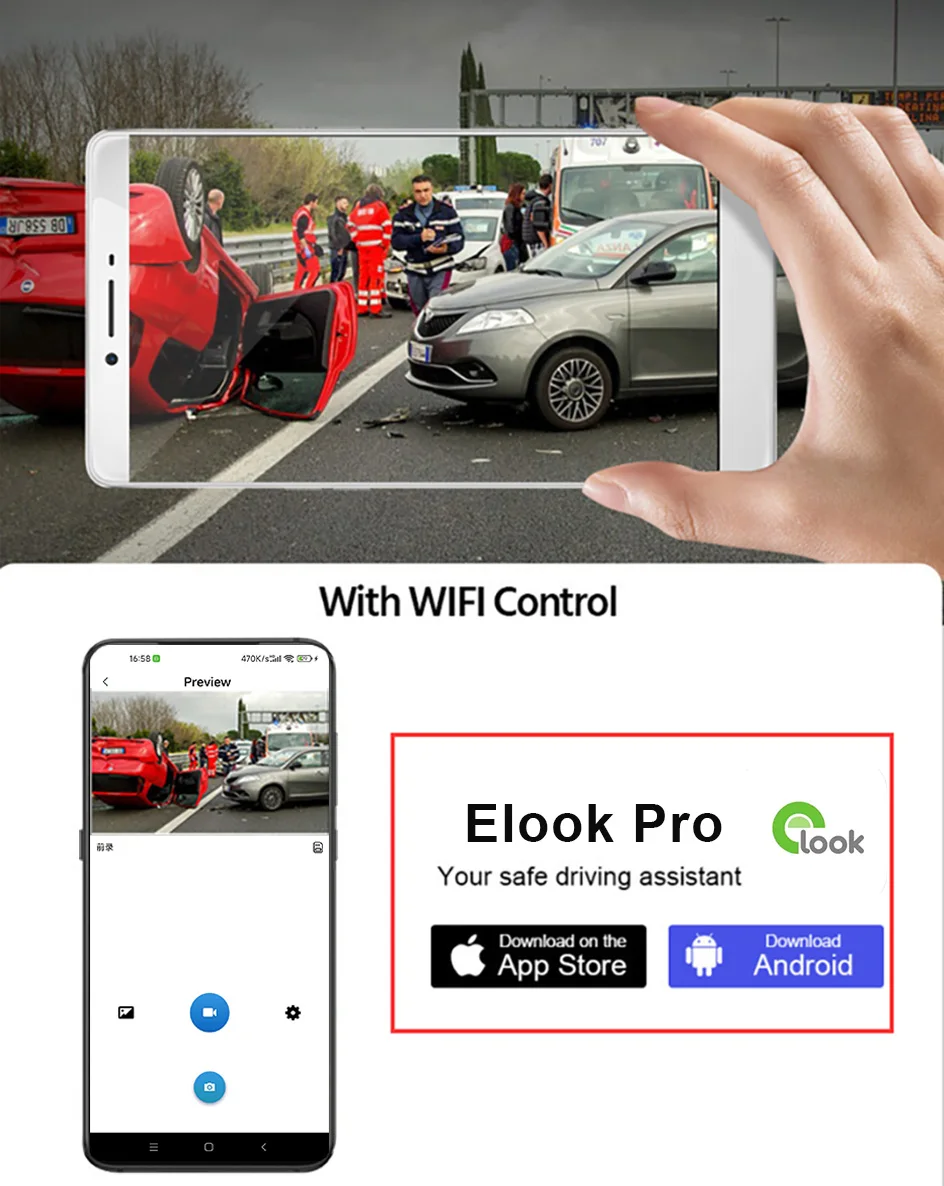

Connect WiFi Control

You can control the DVR by connected mobile phonevia WiFi, like recording video, the file recorded video from the overwriting.taking photo, playback preview,parameter settings, etc.

Streaming Media DVR Mirror

Streaming media rear view mirror use full screen instead of original rear view mirror. Display rear image of vehicle on screen in real time through camera.

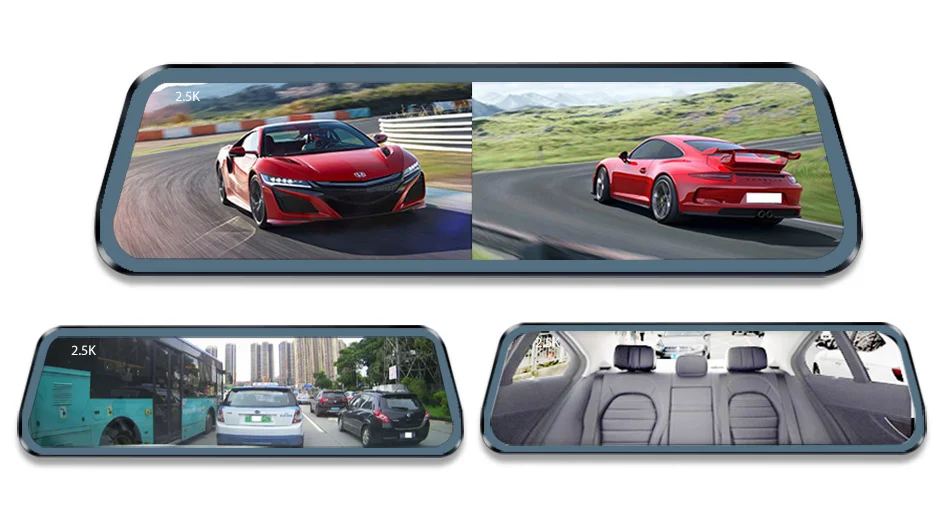

1:1 Split Screen

1:1 split screen design to switch front and rearview recording, big screen and clearly and ersily to check rear view.Touch screen to switch to front camera,back camera.

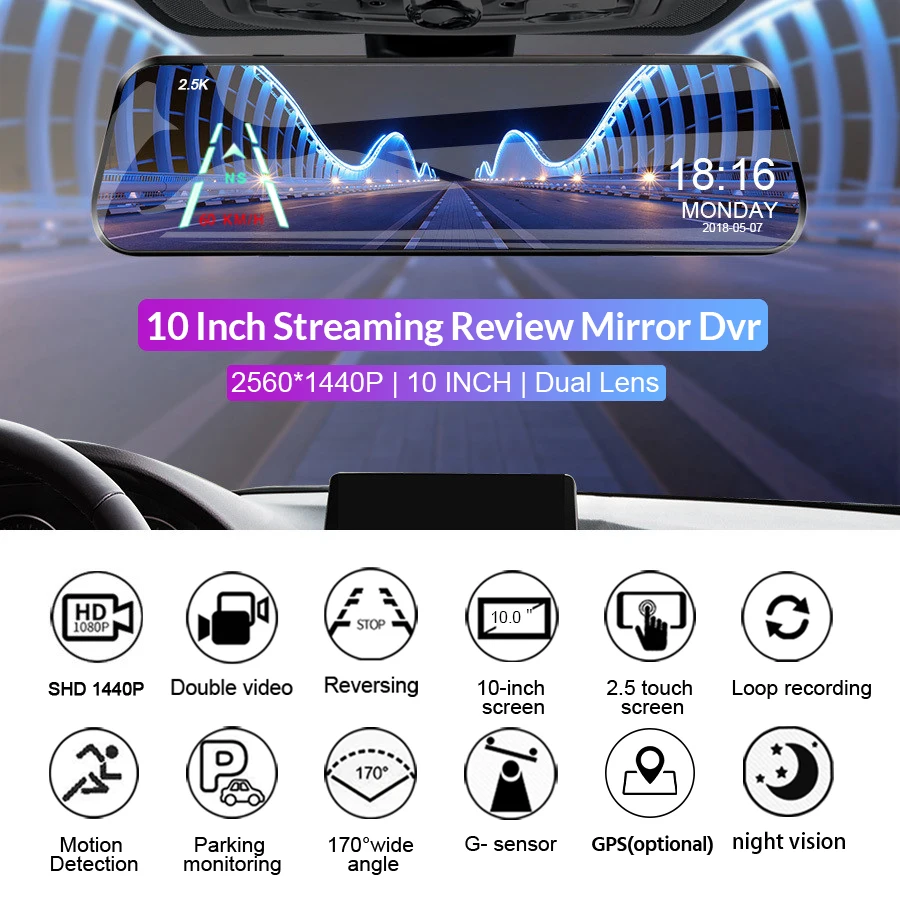

10 Inch Touch IPS Screen

We use the largest IPS Screen,with touch function,get more convenience for operation,get more higher resolution for videos/images display.

2.5D Curved Surface Screen

2.5D curved glass design, scratch-resistant, anti-glare, anti-fingerprint.

kf Sfac37bcf7439496ea8b36fb0d846b638u

6 Glass HD Lens

The front camera image sensor is Sony IMX335, and 6-lens quality offers non-deforming images, together with 170° wide angle, captures the whole road’s picture in 1440P high resolution.

kf S37a94f631710433bacedb758fcfb985fb kf Se6ef1ca27f9246c3ba703fc633d50bb0V

Front 2.5K + Back 1080P Higher Quality Images

Real HD 1440P help to identify vital details such as license plates,driver actions and road features which may prove your innocence.

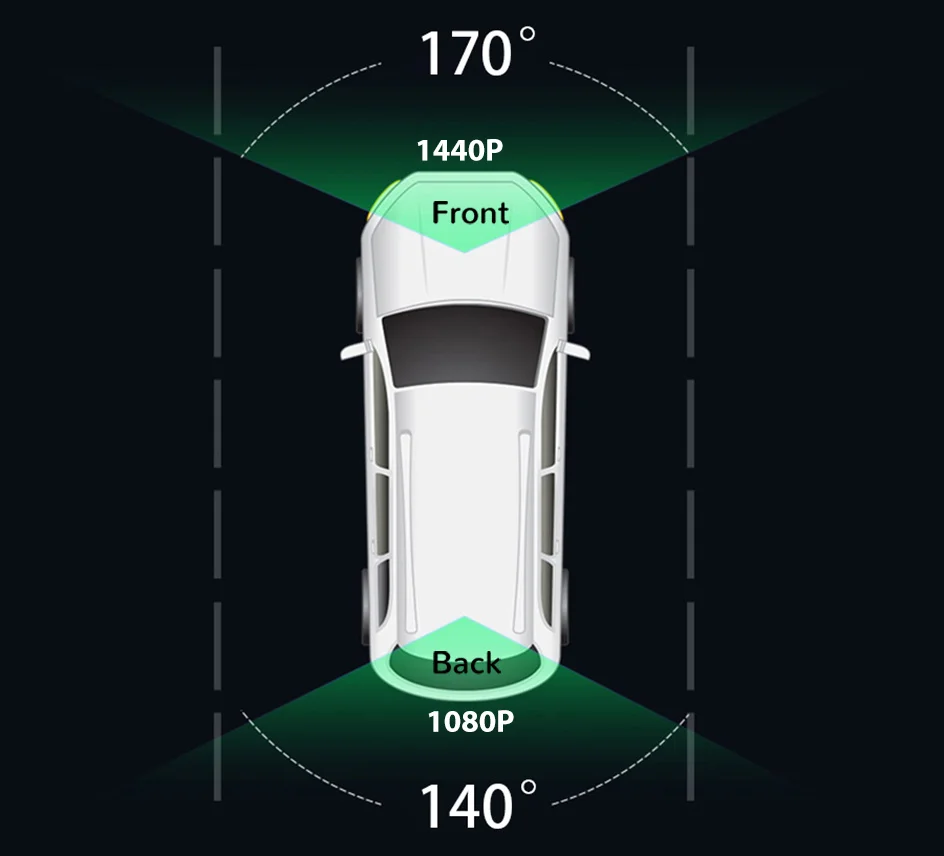

Dual Camera Simultaneously Recording

170 Degree Angle front camera with 140 Degree Angle Night vision Rear view Camera (Optional) that allows for simultaneously recording videos from two different angles. Two split view make you have clear view from front and back-up camera.

Real-time Display Reverse Parking view

Smart rear view angle switch between driving and parking.You could see all further vehicles and objects clearly behind. you while real-time driving and it will switch the rear view camera automatically to give a closer backup image when parking.

About Choosing The Length Of Rear Camera Cable

There are 3 lengths of rear camera (up to about 15 meters) can be chosen,suitable for cars of different lengths. Please choose the rear camera according to the length of your car. If you want to buy rearview camera with 10 meters or 15 meters, please contact us.

Loop Recording

When this feature is turned on, the memory card is full and the oldest video will be overwritten by the newly recorded video.However, videos under special conditions will not be overwritten, such as G-sensor, Parking Monitoring. kf Sf9a45039a85c429e99e2bde5050fc80bA

G-Sensor

When your car is subjected to an impact or other emergency, the G sensor is triggered, so that the recorder immediately records and locks the video.

kf S049eb2886c314bc5a061473134e7b900D

Parking Monitoring

When the machine is powered normally and the monitoring mode is on,if the vehicle body is bumped, the recorder will start monitoring video,thus protecting your property.(If you want 24H parking monitoring,please buy a Buck line.)

Buck Line

Use the buck line to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the buck line to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the buck line to the fuse box ACC interface.

Wide Dynamic Range (WDR)

WDR technology can achieve very perfect video and image quality, regardless of whether the outside light is too bright or too dark.

Video Display

A37 Details And Size Display

Packing List

A37 DVR

-1 x DVR(Without Rear View Camera)
-1 x Car charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)

kf S6a0c597d52e7430a97bc51d152c1defe5

A37 DVR+6M Sony RCC

-1 x DVR
-1 x Car charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x Sony 1080P Rearview Camera With 6 Meters Cable

kf Sde5305dff88e41b79d541ef68d88e68cC

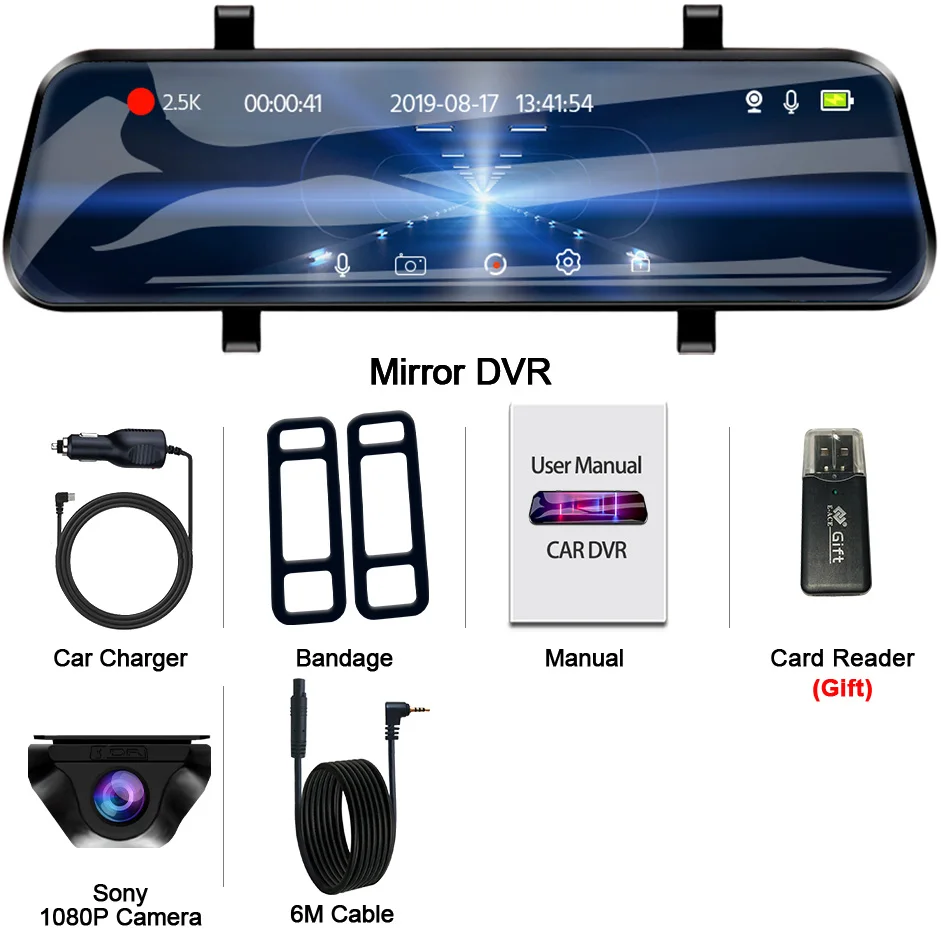

A37 DVR+6M Sony RCC+BL

-1 x DVR
-1 x Car charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader(Gift)
-1 x Buck line For 24H Parking Monitoring
-1 x Sony 1080P Rearview Camera With 6 Meters Cable

kf S4f8676f103d54637b7c7a3a44bad7c59K

A37 DVR+10M Sony RCC

-1 x DVR
-1 x Car charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x Sony 1080P Rearview Camera With 10 Meters Cable

kf S99d2f0a4cad54791a63f52562cea4c95w

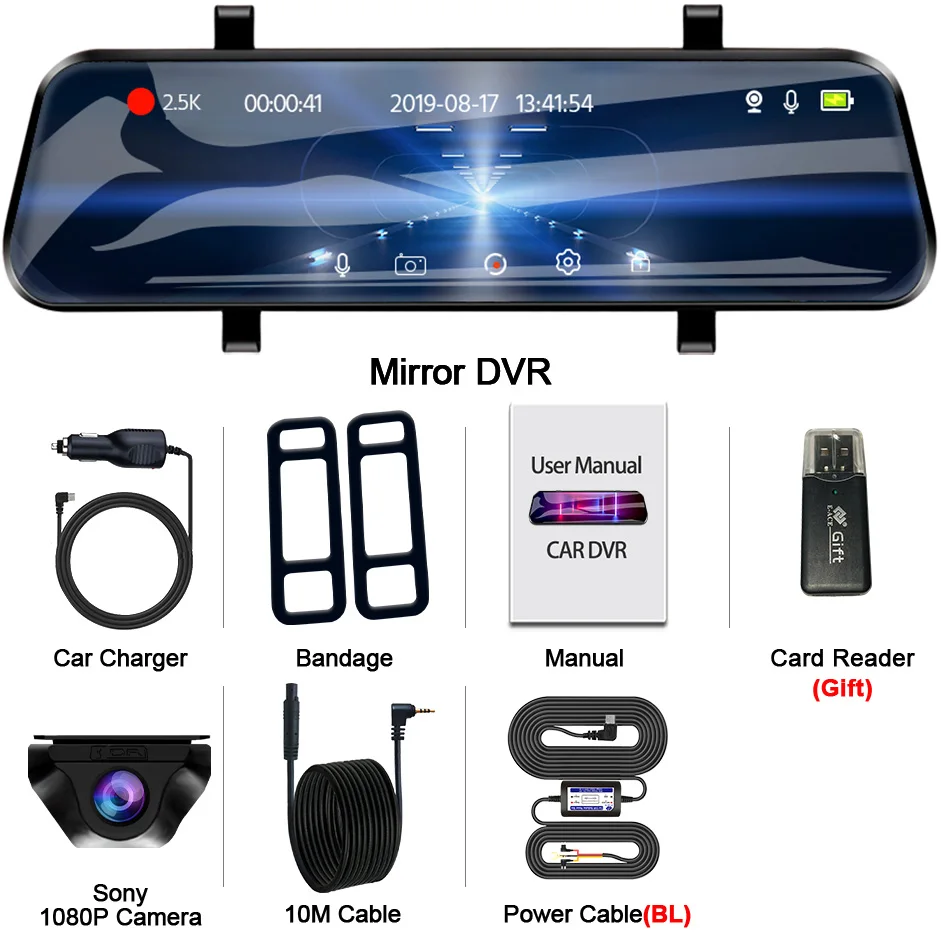

A37 DVR+10M Sony RCC+BL

-1 x DVR
-1 x Car charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader(Gift)
-1 x Buck line For 24H Parking Monitoring
-1 x Sony 1080P Rearview Camera With 10 Meters Cable

kf Sf2c9e210804c4d4aac34008c8e2a1fb77

Installation Display

If you want the DVR Mirror looks beautiful after install our A37, please confirm your original car mirror is less than 210mm, like following picture 1. And if your Original car mirror is more than 210mm and less than 240mm, please take the camera lens out. Like following picture 2.

kf Sc98fa4f903cb4509b761f7348903610cg kf S05fd7f56edf349c7af018501428715det

About Rear Camera Installation

Please connect the rear camera’s Red cable wire with your car reverse lamp power’s Positive pole(+). and then plug the car charger into the cigar lighter to power supply the car dvr.When you get your car in Reverse Gear,the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
